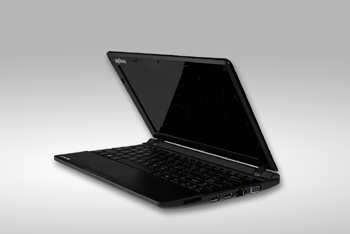

Axioo Pico PJM 512 Specifications

Axioo Pico PJM 512 is powered by Intel Atom N550 processor, 10.1” WSVGA display, Intel GMA 3150, Intel NM10 Express Chipset, 1GB DDR3 memory, 320GB hard disk, three USB 2.0 ports, 7-in-1 Card Reader, 0.3 MP camera, and 6-cell Li-Ion battery.

Axioo Pico PJM 512 Specifications

Display
Diagonal Size : 10.1”
Resolution : 1024 x 600 (WSVGA)
Technology : TFT LCD

Graphics Card
Intel® GMA 3150
Up to 256 MB Memory Share
Support Microsoft® DirectX® 9.0

Processor
Type : Intel® Atom™ N550
Speed : 1.50 GHz
Cache : 1 MB L2

Chipset
Intel® NM10 Express Chipset

Memory
1GB DDR3
1 x 204 Pin SO-DIMM Socket
Memory Expandable up to 2GB (1024/2048 MB DDR3 Module)
Support DDR3-800/1066/1333 MHz (Known PC6400/ PC10600/ PC12800)

Storage
2.5" SATA 320GB HDD

Communication
LAN : Fast Ethernet (10/100 Mb Base-TX)
WLAN : Wireless LAN 802.11 b/g/n Half Minicard with USB Interface

Inputs and Controls
Winkey Isolated Keyboard
Built-in touch pad with Multi gestured and scroll function

Audio
High Definition Audio
3D Stereo Enhanced Sound System
Built-In Microphones
Two Speakers

Interface
3 x USB 2.0
1 x External CRT
1 x Headphone Jack
1 x Microphone Jack
1 x RJ-45 Jack for LAN
1 x DC-In Jack

Slots
Card Reader : 7-in-1 Card Reader (MMC, RSMMC, SD, Mini SD, MS, MS Duo, MS Pro)
Mini-Card Slot for WLAN Module

Camera
0.3 MP Video Camera Module

Power
Battery : 6-cell Li-Ion Smart Battery 11.1V 4400mAh 48.84 WH
Adapter : Full Range 30Watt AC Adapter
Standby Time : 473 minutes
Work Time : 315 minutes

Security
Kensington® Lock

BIOS
Phoniex Bios Technology

Dimensions and Weight
Width : 266 mm
Depth : 185 mm
Height : 18.5 - 25.4 mm
Weight : 1.4 kg (with 6-cell battery)

Operating System
Linux & Windows® 7 (optional)

Color
Black

Axioo Pico PJM 512
