HP EliteBook 8560w Specifications

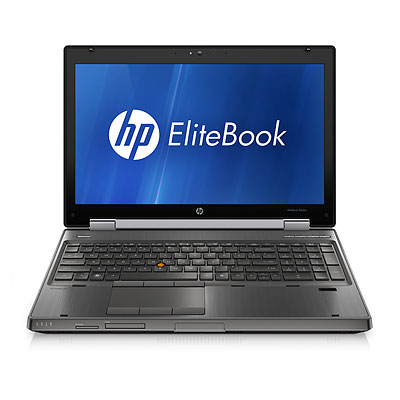

HP EliteBook 8560w
HP EliteBook 8560w is powered by 2nd generation Intel Core i7/i5 processor, Mobile Intel QM67 Express Chipset, 15.6” HD+ or FHD display, two USB 3.0, one USB 2.0, one USB 2.0 charging, and an 8-cell battery.





HP EliteBook 8560w Specifications

Display
Diagonal Size : 15.6”
Resolution : 1600 x 900 (HD+)
Technology : LED-backlit WVA anti-glare

Diagonal Size : 15.6”
Resolution : 1920 x 1080 (FHD)
Technology : LED-backlit WVA anti-glare

Diagonal Size : 15.6”
Resolution : 1920 x 1080 (FHD)
Technology : LED-backlit UWVA anti-glare DreamColor

Graphics Card
AMD FirePro M5950 with 1 GB dedicated GDDR5 video memory
NVIDIA Quadro 1000M with 2 GB dedicated DDR3 video memory
NVIDIA Quadro 2000M with 2 GB dedicated DDR3 video memory

Processor
Type : Intel® Core™ i7-2820QM quad-core processor
Speed : 2.3 GHz with Turbo Boost up to 3.4 GHz
Cache : 8 MB

Type : Intel® Core™ i7-2720QM quad-core processor
Speed : 2.2 GHz with Turbo Boost up to 3.3 GHz
Cache : 6 MB

Type : Intel® Core™ i7-2630QM quad-core processor
Speed : 2.00 GHz with Turbo Boost up to 2.9 GHz
Cache : 6 MB L3

Type : Intel® Core™ i7-2620M dual-core processor
Speed : 2.7 GHz with Turbo Boost up to 3.4 GHz
Cache : 4 MB

Type : Intel® Core™ i5-2540M dual-core processor
Speed : 2.6 GHz with Turbo Boost up to 3.3 GHz
Cache : 3 MB

Type : Intel® Core™ i5-2520M
Speed : 2.5 GHz with Turbo Boost up to 3.2 GHz
Cache : 3 MB

Chipset
Mobile Intel® QM67 Express Chipset

Memory
Slots : 4 SODIMM
Max : 32 GB 1333 MHz DDR3 SDRAM

Storage
SATA II 7200 rpm
From : 320 GB
Up to : 750 GB

SED SATA II 7200 rpm
Up to : 320 GB

Solid State Drive
From : 128 GB
Up to : 256 GB

Optical Drive
Blu-ray R/RE DVD+/-RW SuperMulti DL
DVD+/-RW SuperMulti DL
DVD-ROM

Communication
LAN : Integrated Intel 82579LM Gigabit Network Connection (10/100/1000 NIC)

WLAN :
Intel Centrino 802.11a/b/g/n
Atheros 802.11a/b/g/n

Mobile Broadband :
HP hs2340 HSPA+
HP un2430 EV-DO/HSPA
HP lt2510 EV-DO/LTE

Bluetooth : HP Integrated Module with Bluetooth 2.1 + EDR Wireless Technology

Inputs and Controls
Full-sized spill-resistant keyboard with separate numeric keypad and drains
Touchpad with on/off button, two-way scroll, gestures, three pick buttons
Pointstick with three additional pointstick buttons

Audio
SRS Premium Sound
Integrated stereo speakers
Dual-microphone array
Button for volume mute
Function keys for volume up and down
Stereo headphone/line out
Stereo microphone/line in

Interface
2 x USB 3.0
1 x USB 2.0
1 x USB 2.0 charging
1 x eSATA/USB combo
1 x external VGA monitor
1 x DisplayPort
1 x 1394a
1 x stereo microphone in
1 x stereo headphone/line-out
1 x AC power
1 x RJ-11
1 x RJ-45
1 x docking connector
1 x secondary battery connector

Slots
Card Reader :
Express Card/54
Smart Card Reader
SD/MMC

Camera
HD webcam (select models)

Power
Battery :
8-cell Li-Ion 83 WHr
HP Long Life 8-cell Li-Ion 75 WHr

Adapter :
200W Smart AC adapter
150W Smart AC adapter
120W Smart AC adapter

Security
HP ProtectTools Security Manager
Central Management capable
HP Fingerprint Sensor
Integrated Smart Card Reader
Enhanced Pre-Boot Security (Multiuser / Multifactor)
HP SpareKey
One-Step Logon
TPM 1.2 Embedded Security Chip
HP Disk Sanitizer
Security lock slot
Security screw for bottom access door
Support for Intel AT

Dimensions and Weight
Width : 38.2 cm (15”)
Depth : 25.75 cm (10.1”)
Height : 3.45 cm (1.36”)
Weight : Starting at 3 kg (6.69 lbs)

Environmental
Operating Temperature : 0 - 35°C (32 - 95°F)

Operating System
Genuine Windows® 7 Professional 32-bit
Genuine Windows® 7 Professional 64-bit
Genuine Windows® 7 Home Premium 64-bit
Genuine Windows Vista® Home Basic 32-bit
FreeDOS

Software
Roxio My DVD 2010 SE
Microsoft Office 2010 preloaded (purchase of a Product Key required to activate a full Office 2010 suite)
Norton Internet Security 2011 (60-day subscription)

HP EliteBook 8560w


HP EliteBook 8560w
